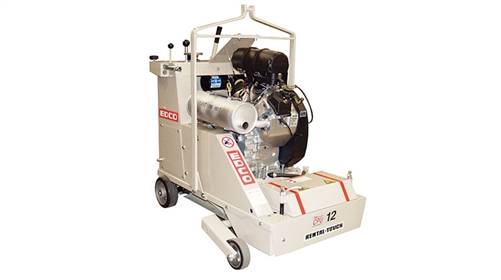

Edco 75600 CPU-12 12" Self-Propelled Scarifier, CPU-12 Electric, 15HP-3P-460V

Scarifiers (aka Planers and Milling Machines) level, clean, and texture surfaces. They repair common slab problems like curled joints, unevenness, sidewalk trip hazards, and weather damage. Scarifiers remove contaminates, epoxy, paint, traffic lines, and more.

• 12" working width will scarify approximately 1,250 - 1,500 sq ft per hour at a depth per pass of 1/8"
• Adjustable to 1/4" working depth per pass
• Upcut drum rotation and heavy weight construction provide faster milling action and more uniform surface texture
• Standard Outrigger Axle Assembly enables the machine to follow slab contours closely when working on uneven surfaces and provide uniform surface removal
• Hydrostatic transmission with forward and reverse drive provides smooth speed changes and less operator fatigue
• Cam-operated fifth wheel allows the operator to change direction or reposition the machine while the engine is still running

IDEAL FOR...

• Planing concrete, asphalt, epoxies, elastomerics and masterplate floors with ease
• High production use in industrial plants, malls, dairy barns, roads or warehouses

PRODUCT APPLICATIONS

• Surface & Marking Removal
• Surface Leveling
• Surface Texturing & Grooving

CPU-12, 6-Shaft General Purpose Carbide Cutter Drum Assembly Procedure
